H-13 steel is an air hardening chromium die steel - can be used for a range of applications. The higher vanadium content ensures increased resistance to heat checking and all round improvement to properties at elevated temperatures.
H-13 & H-13M Similar/Equivalent Steel Grades :
| CHINA | BRAZIL | AUSTRIA | GERMANY | |
| TG | VILLARES | BOHLER | DEW | GRODITZ |
| H 13 | VH13IM | W302 | 1.2344 | 1.2344 |
| SLOVANIA | ITALY | JAPAN | |||
| RAVNE | LUCCHINI | HITACHI | NIPPON | SANYO | |
| UTOP M02-EFS | ESKY0S2344 | DAC | KDA | QD61 | |
| S.KORIA | TAIWAN | CHEZ. REP |
| DOOSAN | GLORIA | POLDI |
| STD 61 | GMH13 (ESR) | TLI EFS |
Steel Properties : High hot-wear resistance, high hot tensile strength and toughness. Good thermal conductivity and insusceptibility to hot cracking. Can be water-cooled to a limited extent.
Applications : Hot-work tool steel for universal use. Pressure casting dies and metal extrusion tools for processing light metals, forging dies, moulds, screws and barrels for plastic processing, nitrided ejectors, hot-shear blades. Suitable for Aluminium Extrusion Die & Aluminium Copper Forging Dies.
H13 has high hard resistance and hardness.
Suitable for Aluminium Extrusion Die, and Aluminium Copper forging Die.

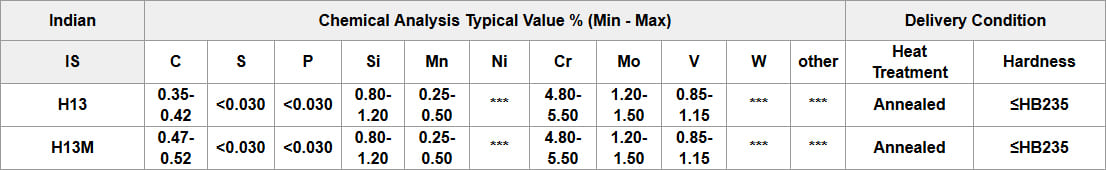

Chemical Composition: (%)
Production Process :
Round Bar :
Flat Bar :
| UT Standard : | Reduction Ratio : | Delivery Status : |
| SEP 1921, (DEC.84)E/e | As 1:4 or 1:5 | in annealed condition. |
Sizes of Round Bars :
| Cold Drawn/Ground Bar | Hot Rolled Annealed & Peeled Bar | Forged + Annealed + Turned Bar |
| Φ 2.0 - 14.4mm | Φ 14.5 - 80.0mm | Φ 81.0 - 810.0mm |
Sizes of Hot Rolled Flat Bars / Sand Blasted & Machined Straight :
| Thickness | Width |
| 5mm - 410mm | 10mm - 810mm |
HEAT TREATMENT CONDITION :
Quenching temperature : 1020-1050ābr>
Cooling Medium : air-cooling
Tempering temperature : 550-650ābr>
Tempering times : 2Times, the tempering temperature in the second time should be lower than in first time
Tempering Hardness : 47-48HRC.
| TemperingĀ°C | 500Ā°C | 550Ā°C | 600Ā°C |
| HRC | HRC56 | HRC54 | HRC50 |
High hot-wear resistance, high hot tensile strength and toughness. Good thermal conductivity and insusceptibility to hot cracking. Can be water-cooled to a limited extent.
Hot-work tool steel for universal use. Pressure casting dies and metal extrusion tools for processing light metals, forging dies, moulds, screws and barrels for plastic processing, nitrided ejectors, hot-shear blades. Suitable for Aluminium Extrusion Die & Aluminium Copper Forging Dies.
H13 has high hard resistance and hardness.
Suitable for Aluminium Extrusion Die, and Aluminium Copper forging Die.
